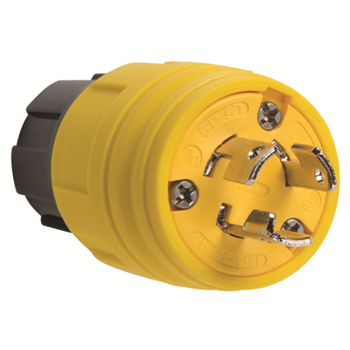

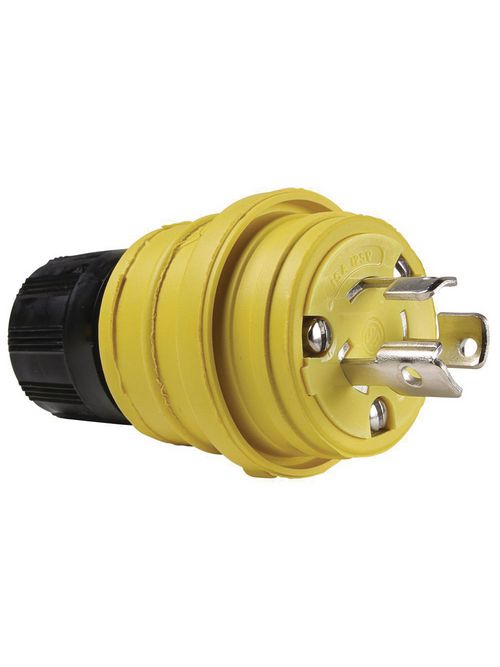

Pass & Seymour 24W-47 15 Amp 125 VAC 2-Pole 3-Wire NEMA L5-15P Yellow Thermoplastic Elastomer Watertight Locking Plug
$24.07/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 24W-47
QED Part # 119951
Plugs

Features

  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
  • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hose down of 1,500 psi.
  • Color coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating.

Specifications

General Info

  • Color: Yellow
  • Type: Plug
  • Features: Watertight
  • Number Of Poles: 2
  • Number Of Wires: 3
  • Special Features: Watertight, NEMA

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 42M
  • CSA Standard: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Diameter (US): 1.63"
  • Length (US): 2.68"

Technical Information

  • Amps: 15A
  • Material: Rubber
  • NEMA Configuration Number: L5-15
  • NEMA Rating: 4X/6P
  • Volts: 125V
  • Volts (AC): 125

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500711422
Long Description Locking Watertight Plug, 15amp 125volt, NEMA Configuration L5-15, multipoint sealing system provides environmental protection of: NEMA 4, 4X, 6, 6P & IP67 rated.
GTiN 00785007114225
Length 2.68 in
Size 3"
Color Yellow
Voltage 125 Volt
Type Male
Diameter 1.63 in
Material Rubber
Applications For Commercial Use
Country of Origin Mexico
Wire Size 10-18 Awg
Family Brand Name Pass & Seymour
NEMA 4X/6P,L5-15
Certifications CSA,UL
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Pass & Seymour
Conductor Size 18-10 AWG
Mounting Type Recessed/Flush
Blade Dimensions 3 in
Environmental Conditions Watertight
