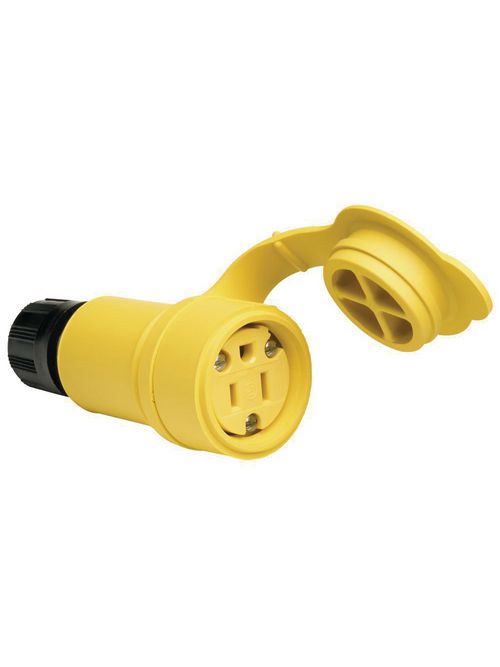

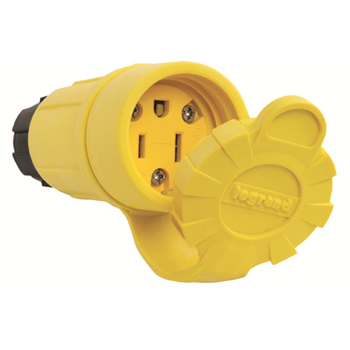

Pass & Seymour 15W-47 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Yellow Rubber Polarized Straight Blade Connector
$28.49/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 15W-47
QED Part # 119935
Connectors

Features

  • Rubber body construction stands up to impacts, oils, chemicals, heat and weather.
  • Floating blades allow self-alignment with contacts for a firm, even electrical connection.
  • Terminal screws backed-out, ready-to-wire, saving time and money.
  • Nickel-plated blades and contacts for long-lasting, superior corrosion resistance.
  • Compression-type cord grip provides watertight seal and 205 lb. pull out strength.
  • Multiple ring seals between plug and connector ensures protection from water and contaminants.
  • Quick-drive assembly screws allow for fast installation to save time and money.
  • NEMA 4, 4X, Watertight. IP65, 66, 67.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: Yellow
  • Type: Connector
  • Features: Watertight
  • Number Of Poles: 2 Pole
  • Number Of Wires: 3 Wire
  • Special Features: Watertight,NEMA

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • UL Listing No: E146159
  • UL Standard: Yes
  • UN SPSC: 39121402

Dimensions

  • Diameter (US): 1.81"
  • Length (US): 4.01"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: 5-15R
  • NEMA Rating: 4X/6P
  • Volts: 125V

Buy American Act Compliance

  • Country Of Origin: UNITED STATES OF AMERICA
  • Buy American Act Status: Buy American Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Rated watertight for 1,500 psi high-pressure hosedown, P&S plugs and connectors feature multiple seals to ensure protection against the environment. Constructed of a sturdy rubber body, which makes them impact- and chemical-resistant, they have nickel-plated blades and contacts for superior corrosion resistance.
GTiN 00785007114164
Length 4-3/4 in
Size 4.75"
Color Yellow
Voltage 125 Volt
Type Watertight
Diameter 1.81 in
Material Rubber
Number of Conductors 3
Conductor Size 12-14 AWG
Applications Commercial
Country of Origin USA
Wire Size 14-12 AWG
Connection Type Screw Terminal
Family Brand Name Pass & Seymour
NEMA 4X/6P,5-15R
Certifications UL,CSA
Buy American Compliant Yes
Number of Ports 2
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121402
Sub Brand Pass & Seymour
