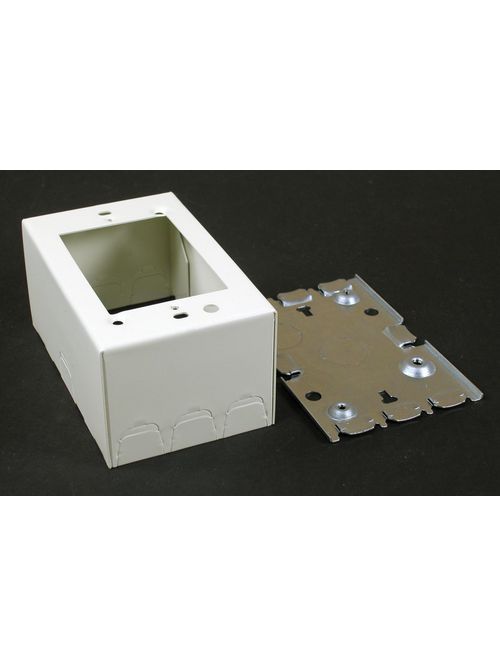

Wiremold V5744 4-5/8 x 2-7/8 x 2-3/4" Ivory Steel 1-Channel Raceway 1-Gang Extra Deep Switch and Receptacle Box
Product image thumbnail 0
Product image thumbnail 1
$25.27/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # V5744
QED Part # 136127
Boxes & Outlets

Specifications

General Info

  • Available Colors: V5744- Ivory5744WH - White
  • Product Series: 500, 700
  • Component Type: Boxes

Technical Information

  • Capacity: Single-Channel
  • Material: Steel

Compatible Series

  • V500, V500-5, V700, 700WH, V700-5

Resources

Overview

Long Description For deep devices such as momentary contact, remote control switches, and hospital signaling system devices. Base has 1/2" trade size KOs. Larger gang boxes available by special order. Single-gang: 4 5/8" L x 2 7/8" W [117mm x 73mm]. Accepts NEMA single-gang standard faceplates. NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the "V" color prefix to "vc" or the "WH" color suffix to "WHC" to denote the Canadian versions.
GTiN 00786776070477
Length 4-5/8 in
Type 500 & 700 Series Raceway
Material Steel
Product Series 500,700
Applications Commercial, Office, Residential
Component Type Boxes
Country of Origin United States
Family Brand Name Wiremold
Certifications NAFTA,ROHS,UL
Outside Diameter 2 3/4" x 2 7/8"
Jacket Color Ivory, White
Sub Brand Wiremold
Voltage null
