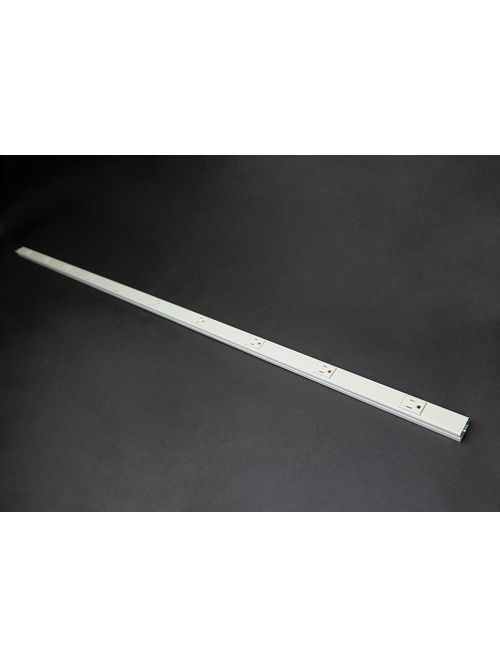

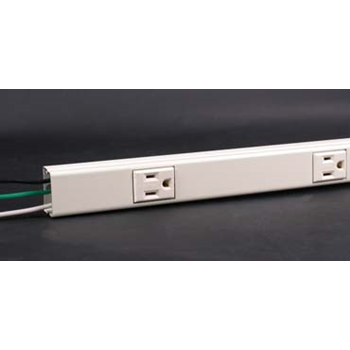

Wiremold V20GB306 36" 6" Center Distance Ivory Steel Single Raceway Multi-Outlet Strip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # V20GB306
QED Part # 136260
Raceway Pre-Wired


  • Steel Raceway. Provides superior strength for any dry location installation.
  • Compact, low profile appearance. Requires minimal space.
  • Available in Ivory ScuffCoat or gray baked enamel finish. The durable ScuffCoat provides a durable, scratch-resistant finish while the gray baked enamel compliments the décor or can be painted.
  • Full range of fittings. Provides a complete wiring solution.
  • Single-and-dual-gang boxes. Wire devices into the raceway system or protect a Plugmold® strip with a surge or GFCI device.
  • Factory wired Plugmold® sections available in 3’, 5’, and 6’ lengths with 15A receptacles installed in cover. Ideal for short runs requiring additional outlets in electrically busy areas.
  • Single, alternating circuit, and isolated ground receptacles. Meets virtually any job requirement.
  • Choice of receptacle spacing. Center spacing between receptacles of 6'', 9'', 12'', and 18''.
  • Snapicoil harnesses of prewired receptacles in 48’ and 50’. Eliminates multiple splicing, speeding up installation on long runs.
  • Snapicoil harnesses offer a choice of receptacle spacing. Center spacing between receptacles of 12'', 18'' and 30''.
  • Customization available. All products can be modified to accommodate virtually any application.
  • This product meets the material restrictions of RoHS.


  • Special Features: 15A receptacles, Multiple colors available, Compact design, UL5 and ADA compliant, UL and cUL listed raceway
  • Product Depth: 0.88 in
  • Amperage: 15 A
  • Product Height: 1.25 in
  • Product Width: 36.0 in
  • Type: Plugmold
  • Product Volume: 39.6 cu in
  • Voltage: 125.0 V
  • Enclosure Type: Steel
  • Product Weight: 1.79 lb
  • Frequency Rating: 60 Hz
  • Country Of Origin: US
  • Certifications: NAFTA,CULUS,ROHS
  • Number of Receptacles: 6.0
  • Color: Ivory
  • Application Sector: Residential/Commercial
  • Environmental Conditions: Dry interior locations
  • Product Line: Wiremold
  • Standard: cULus Listed Multioutlet Assembly: File E15191 Guide PVGT/PVGT7


  • RoHS Compliant
  • NAFTA Compliant
  • cULus Listed: E15191


Long Description The Wiremold 2000 Series raceway offers a selection of steel, aluminum, and nonmetallic raceways that provide a versatile solution for many applications. Plugmold sections offer single or alternating circuits, in standard or isolated ground receptacles. The ScuffCoat finish is scratch resistant and protects against nicks and chips while preventing color from fading.
GTiN 00786776093162
Length 3 ft
Width 36.0 in
Voltage 125 Volt
Type Plugmold
Material Steel
Product Series Plugmold
Applications For Commercial, Office, Residential Use
Height 1.25 in
Country of Origin USA
Family Brand Name Wiremold
Certifications CULUS,NAFTA,ROHS
Amperage 15 Amp
Enclosure Steel
Sub Brand Plugmold
Color Ivory
Mounting Type Screw-On
Number of Outlets 6
Spacing 6 in
Depth 0.88 in
Weight 1.79 lb
UPC 78677609316
