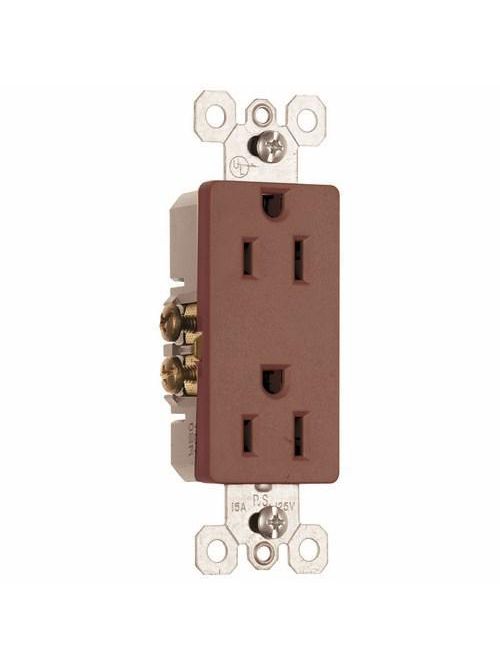

Pass & Seymour 885 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Brown Thermoplastic Duplex Decorator Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 885
QED Part # 119597
Duplex

Features & Benefits

  • Side-access push wire release.
  • Extra-long strap.
  • Quickloop wire looping aid.
  • Self-grounding models provide automatic ground clip.
  • Tri-drive screws.
  • Side wire accepts #12 - #14 AWG solid.
  • Ultrasonic welding of face to back body.
  • Long-term blade retention.
  • High impact-resistant thermoplastic construction.
  • Push wire accepts #14 AWG solid only.
  • Extra-large circuit break-off tabs.

Specifications

General Info

  • Number Of Wires: 3
  • Number Of Poles: 2
  • Color: Brown

Listing Agencies/Third Party Information

  • CSA Listing Info: C22.2 No.42
  • UL Listing No: UL498
  • Federal Spec: No
  • UN SPS C: 39121704
  • CSA Standard: Yes
  • UL Standard: Yes

Dimensions

  • Depth (U S): 1"
  • Width (U S): 1.29"
  • Height (U S): 3.31"

Technical Information

  • Volts A C: 125
  • Volts: 125
  • Amps: 15A

Buy American Act Compliance

  • Country of Origin: CHINA
  • Buy American Act Status: No

Resources

Overview

Long Description Receptacle Sierraplex 15amp 125volt Screw Terminal & Speedwire, Brown
GTiN 00785007885002
Width 1.29 in
Size 4.2 in
Color Brown
Voltage 125 Volt
Type Decorator, Self Grounding
Thickness 1 in
Material Thermoplastic
Applications Residential/Commercial
Mounting Type Wall
Depth 1 in
Height 3.31 in
Grade Residential/Commerci
Country of Origin China
Family Brand Name Pass & Seymour
Certifications UL,CULUS
Amperage 15 Amp
Blade Dimensions 4.2 x 1 in
Number of Gangs 2 Gang
Number of Poles 2 Pole
Number of Wires 3
Sub Brand The Radiant
UPC 78500788500
