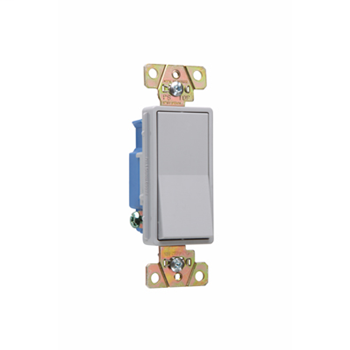

Pass & Seymour 2601-GRY 15 Amp 120/277 VAC 1-Pole Gray Polycarbonate Screw Mounting Rocker Decorator Switch
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 2601-GRY
QED Part # 119593
1-Pole

Features

  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Number Of Poles: 1
  • Style: Decorator

Listing Agencies/Third Party Certifications

  • CSA Listing Info: C22.2 111
  • CSA Standard: Yes
  • UL Listing No: 20
  • UL Standard: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.06"
  • Height (US): 3.281"
  • Width (US): 1.3"

Technical Information

  • Amps: 20A
  • Volts: 120/277VAC
  • Volts (AC): 120/277

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Video

Categories

Overview

UPC 78500753902
Long Description Single Pole, Back and Side Wire, Decorator Switch, 15 amps, 120/277 volts, Gray.
GTiN 00785007539028
Width 1.3 in
Size 4.25"
Color Gray
Voltage 277 Volt
Type Switch
Applications For Industrial Use
Depth 1.06 in
Height 3.281 in
Country of Origin Mexico
Style Decorator
Wattage 1 Watt
Family Brand Name Pass & Seymour
Certifications UL,CSA
Amperage 20 Amp
Contact Rating 15amp, 120/277vac
Number of Poles 1 Pole
Sub Brand Pass & Seymour
Finish Gloss
Material Thermoplastic
Terminal Type Screw
Power Rating 1 W
TC Connection Back and Side Wired
Actuator Rocker/Button
Contact Configuration SPST
Blade Dimensions 4-1/4 in
