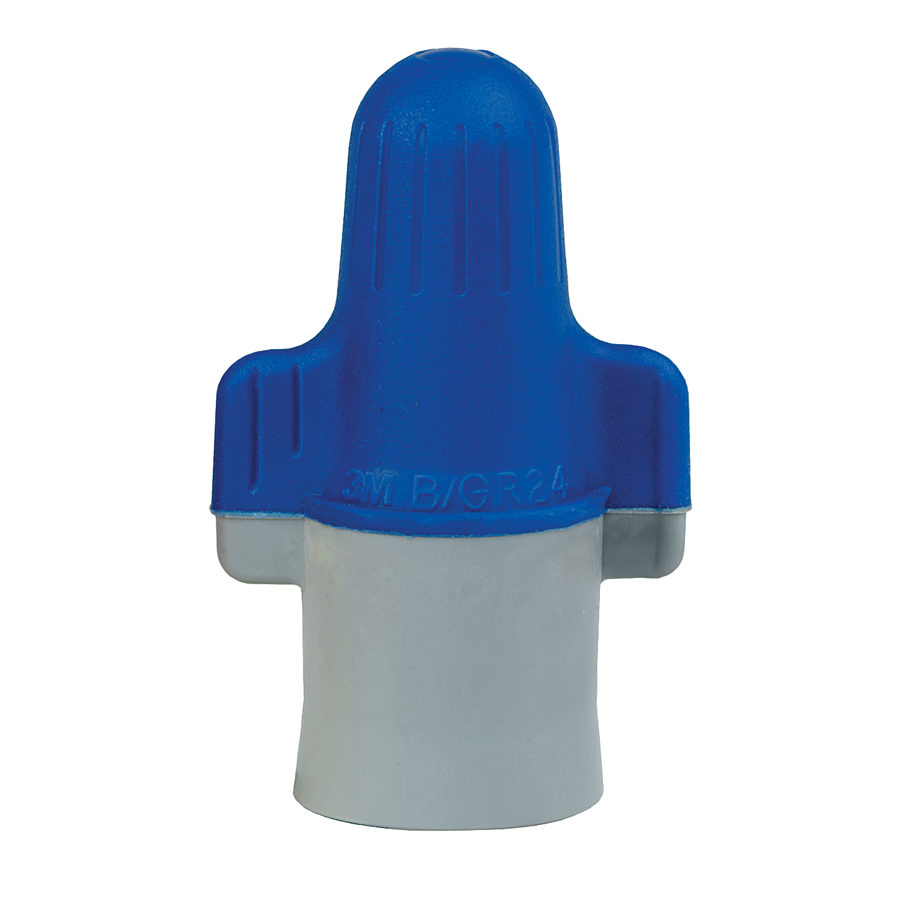

3M B/G+BOX 50/Box Blue/Gray Spring Connector

Manufacturer: 3M | Catalog # B/G+POUCH | QED Part # 82562
$48.79/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
100 available

For Delivery

Order by Monday 4:00pm MT for delivery Tuesday
Out of stock, call for availability
MDM Primary Spec Sheet Product Brochure Product Catalog Page
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.

Technical Information

Applications
For All Kinds of Jobs From Industrial and Residential Construction, to Automotive, Marine and Appliance Applications
Conductor Size
14-6 AWG
Connection Type
Twist-On
Contact Material
Spring Steel
Insulation Material
Polypropylene, Thermoplastic Elastomer
Material
Plastic
Max Operating Temperature
221 degrees F
Standard
UL CE IEC And CSA
Temperature Rating
105 C
Type
Flame Retardant
Voltage
600 Volt

Manufacturer Information

Family Brand Name
3M
Sub Brand
Performance Plus

General Product Info

Color
Blue/Gray
GTiN
00054007431503
Product Type
Connector

Dimensions

Diameter
1.12 in
Length
1.79 Inch
UPC
05400743150
