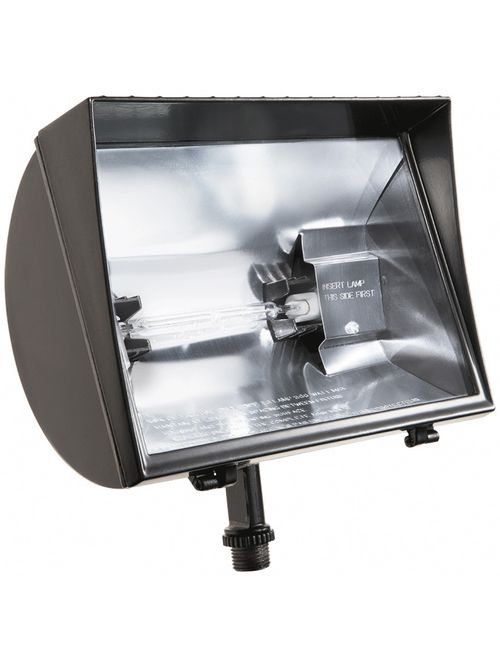

RAB QF500F 500 W 120 Volt 8-3/8 x 6-1/2" Bronze Die-Cast Aluminum Quartz Floodlight Fixture
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Misc Manufacturer
Mfg Catalog # QF500F
QED Part # 122904
Quartz/Halogen Flood Lights

Features

  • Silicone gasket remains in place during relamping
  • 5mm thick, tempered glass lens
  • High quality 130 volt (for extended life) Quartz Halogen lamp
  • Stainless steel external hardware
  • Stainless steel clip with Vandal proof screw capability
  • Integra hood glare shield for friendly lighting when properly aimed
  • Fins for heat dissipation and extended lamp life

Specifications

Performance

  • Watts: 500W
  • Lumens: 11,000
  • Efficacy: 22 lm/W
  • Color Accuracy: CRI
  • L70 Lifespan: 0 hours
  • Input Watts: 500.00W

Dimensions

  • Weight: 3.2 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.

Construction

  • Housing: Die cast aluminum, 1/2" NPS threaded arm with locking swivel fits all standard mounting covers
  • Lens Gasket: High-temperature silicone gasket stays in place during relamping
  • Reflector: Semi-specular anodized aluminum
  • Lens: Thermal, tempered, shock resistant glass
  • Finish: Formulated for high durability and long-lasting color

Electrical

  • Sockets: Porcelain RSC base sockets with gold plated spring loaded contacts and strain relieved 250° C Teflon insulated wires

Other

  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

Long Description QUARTZ CURVE 500W 120V AND LAMP BRONZE
GTiN 00019813200514
Color White
Type QUARTZFLOOD
Mounting Type 20
Weight 3.2 lb
Wattage 500 W
Lumens 11,000 lm
Family Brand Name N/A
Lamp Type T3
Input Wattage 500.00 W
Efficacy 22 LPW
