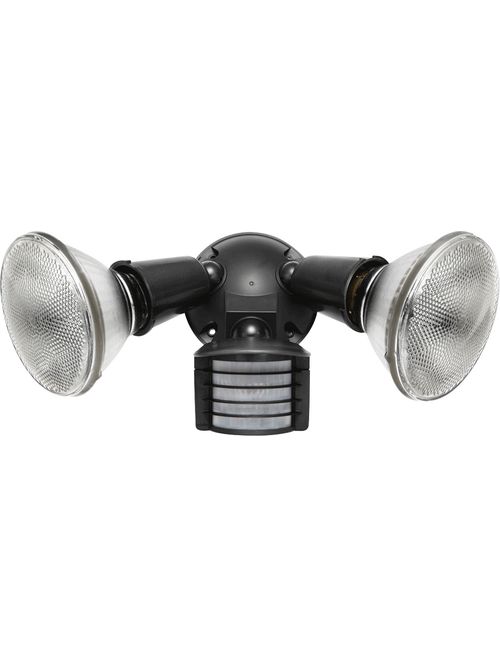

RAB LU300 120 Volt 110 Degrees Bronze Outdoor Lighting Sensor
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 7 to 11 Days
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # LU300
QED Part # 122916
Motion Sensors


  • 300 Watt switching capacity
  • Manual override
  • Fully adjustable positioning
  • 110° double look down lens
  • Tough, vandal resistant lens and grill
  • LS300 fits 1/2" standard threaded cover plates
  • 3-Year Warranty



  • Weight: 1.4 lbs


  • UL Listing: Suitable for wet locations


  • Voltage: 120 volts AC 60 Hz
  • Power Consumption: 1W
  • Wall Switch Manual Override: Two flip logic prevents activation by momentary power outages. Override resets to auto after 6 hours or at dawn. No extra wiring needed.
  • Surge Protection: Withstands up to 3000 volts
  • Switching Capacity: 300 watts incandescent @ 120 volts, 2.5 amps.

Sensor Characteristics

  • Time Adjustment: 8 seconds to 10 minutes
  • Photo Control: Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
  • Detector Sensitivity: Adjustable from 100% to 50%
  • Auto Test Logic: 5 minutes of test time when power is turned on, Rests to auto mode without further adjustment
  • Sensor Housing: Made of tough, corrosion resistant polycarbonate
  • Detection: 110° view


  • Floodlights: Made of tough, corrosion-resistant polycarbonate. Accepts PAR-38 lamps, medium base, 150 watts max. Lamps not included.


  • Warranty: 3 year sensor warranty
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


Applications OUTDOOR
GTiN 00019813730004
Finish Bronze
Warranty Length 3 yr
Color Bronze
Voltage 120 Volt
Weight 1.4 lb
Family Brand Name Rab Design Lighting
Wattage 300 Watt
UPC 01981373000
