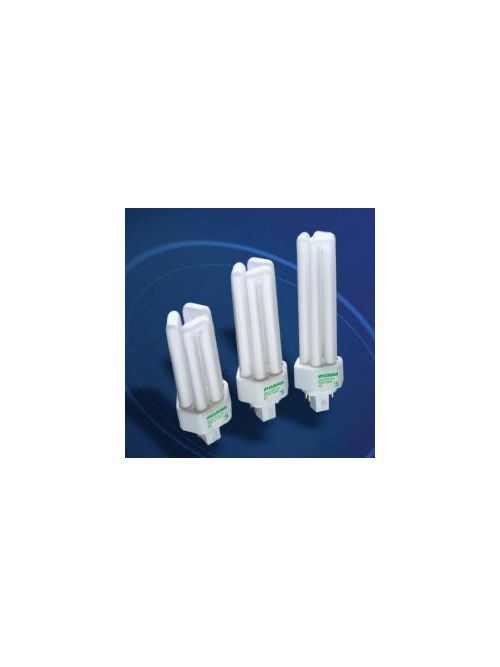

Sylvania 20871 42 W 82 CRI 3500 K 3200 lm GX24Q-4 Base 4-Pin Triple Dimmable Compact Fluorescent Lamp
$7.49/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Osram Sylvania / Ledvance
Mfg Catalog # 20871
QED Part # 129725
General Use & Decorative CFL

Product Information

  • Maximum Overall Length - MOL (in): 6.5
  • Color Rendering Index (CRI): 80 - 89
  • Color Temperature/CCT (K): 3500
  • Abbrev. With Packaging Info.: CF42DTEIN835ECO 50/CS 1/SKU
  • Initial Lumens at 25C: 3200
  • Family Brand Name: Dulux┬« EL
  • Base: GX24Q-4
  • Diameter (in): 0.472
  • Mean Lumens at 25C: 2670
  • Nominal Voltage (V): 120.00
  • Bulb: T4X3
  • Nominal Wattage (W): 42.00
  • Average Rated Life (hr): 15000
  • Maximum Overall Length - MOL (mm): 163
  • Diameter (mm): 12.00

Additional Product Information

Packaging Information

  • Case Width (in): 9.409
  • Case Depth (in): 7.402
  • Case Weight (lbs): 11.869
  • Case Qty: 50
  • Cases/Pallet: 60
  • SKU's/Case: 50
  • SKU Qty: 1
  • Case Length (in): 19.843
  • Case Cube (ft): 0.800
  • SKU's/Pallet: 3000
  • Pallet Qty: 3000
  • SKU UPC: 046135208713

Product Documents, Graphs, and Images

Footnotes

  • Lumen output and life rated on high frequency operation.
  • Optimum light output for DULUX T/E IN amalgam compact fluorescent lamps occurs at approximately 35 deg. C/ 95 deg. F ambient temperature when the lamp is operated in the base up position. The lumen value listed refers to the optimum light output. Non-amalgam compact fluorescent lamps provide atleast 90% light output from 60-100 degrees F in the base up position, the temperature range is narrower for horizontal or base down position.
  • Rule of Thumb for Compact Fluorescent Lamps: Divide wattage of incandescent lamp by 4 to determine approximate wattage of compact fluorescent lamp that will provide similar light output.
  • SYLVANIA ECOLOGIC fluorescent lamps are designed to pass the Federal Toxic Characteristic Leaching Procedure (TCLP) criteria for classification as non-hazardous waste in most states. TCLP test results are available upon request. Lamp disposal regulations may vary, check your local & state regulations. For more information, please visit www.lamprecycle.org
  • Approximate initial lumens after 100 hours operation.
  • The life ratings of fluorescent lamps are based on 3 hr. burning cycles under specified conditions and with ballast meeting ANSI specifications. If burning cycle is increased, there will be a corresponding increase in the average hours life.
  • There is a NEMA supported, industry issue where T2, T4, and T5 fluorescent and compact fluorescent lamps operated on high frequency ballasts may experience an abnormal end-of-life phenomenon. This end-of-life phenomenon can resultin one or both of the following: 1. Bulb wall cracking near the lamp base. 2. The lamp can overheat in the base area and possibly melt the base and socket. NEMA recommends that high frequency compact fluorescent ballasts have an end-of-life shutdown circuit which will safely and reliably shut down the system in the rare event of an abnormal end-of-life failure mode described above. The final requirements of this system are yet to be defined by ANSI. For additional information refer to NEMA papers on their WEBSITE at www.NEMA.org.
  • Minimum starting temperature is a function of the ballast; consult the ballast manufacturer.

Categories

Overview

UPC 04613520871
Long Description DULUX 42W triple compact fluorescent amalgam lamp with 4-pin base, 3500K color temperature, 82 CRI, for use with electronic and dimming ballasts, ECOLOGIC
GTiN 00046135208713
Voltage 120 Volt
Type CF42DTEIN835ECO 50/CS 1/SKU
Diameter 0.472 in
Bulb Type T4X3
Wattage 42 Watt
Color Temperature 3500 K
Lumens 3200 LM
Base GX24Q-4
Family Brand Name Sylvania
Average Rated Life 15000 hr
Color Rendering Index 80 - 89
