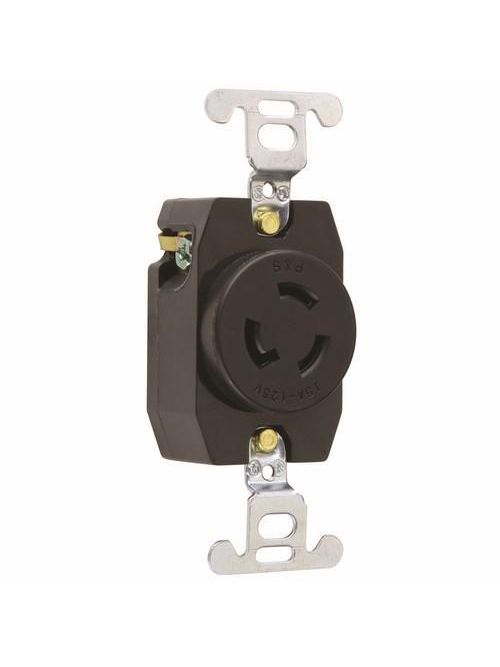

Pass & Seymour 4710 15 Amp 125 VAC 2-Pole 3-Wire NEMA L5-15R Nylon Locking Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
$20.87/ea
In Stock | 73 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 4710
QED Part # 121569
Single

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

General Info

  • Type: Single Receptacles
  • Number Of Wires: 3

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Depth (US): 1.0"
  • Length (US): 3.281"
  • Width (US): 1.437"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: L515
  • Volts: 125V
  • Volts (AC): 125

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Turnlok Single Receptacle 3wire 15amp 125v
GTiN 00785007471007
Length 3.281 in
Finish Gloss
Width 1.437 in
Size 4 in
Color Black
Voltage 125 Volt
Type Single Receptacles
Material Nylon
Conductor Size 4 AWG
Applications Industrial Spec Grade
Mounting Type Flush
Depth 1.0 in
Grade Industrial/Specifica
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA L515
Certifications CULUS
Amperage 15 Amp
Blade Dimensions 4 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Turnlok
UPC 78500747100
