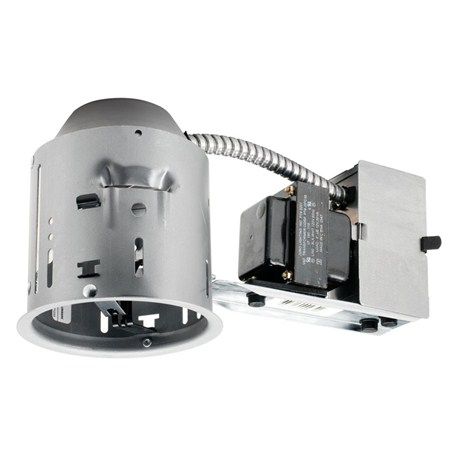

Juno TC44R 4" 12 Volt 50 Va TC Remodel Housing
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Juno Lighting
Mfg Catalog # TC44R
QED Part # 166811
4 In Housing & Trims

Description

  • Remodel springs accommodate up to a 1-1/8-inch ceiling thickness
  • 120-12V 50VA thermally protected magnetic transformer
  • May be dimmed using dimmers specifically designed for magnetic transformers
  • Ceramic bi-pin socket with aluminum heat shield
  • Steel housing is fully assembled for ease of installation
  • Pre-wired junction box includes three 1/2-inch knockouts with pryout slots, 4 non-metallic sheathed cable connectors, and ground wire
  • Thermally protected against improper use of insulation and lamps
  • UL Listed, cUL, CSA certified for through-branch wiring, maximum 4 No. 12 AWG minimum 90 degrees C branch circuit conductors: 2 in, 2 out

Finishes / Types

Finishes

Line Art

Documents

Overview

Family Brand Name Juno
Long Description The non-IC, low voltage remodel housing is ideal for applications where the backside of the ceiling is not accessible. The fixture installs through an opening in the ceiling from below and is secured by factory-installed remodel springs. The housing is designed for non-insulated areas or where insulation is spaced at least 3 inches from the housing.
GTiN 00661209002341
Color Gray
Voltage null
Type Remodel
Applications Recessed Residential; Damp Location; Wet Location w/appr Trims
Shape Round
Lamp Type Halogen (Lamp Not In
Number of Lamps 1
Fixture Type Incandescent Low Vol
Housing Material Steel
Lamp Wattage 50 W
Sub Brand Juno
