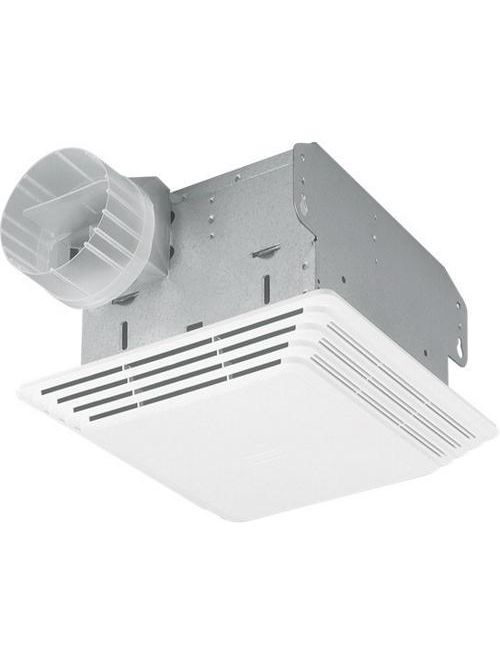

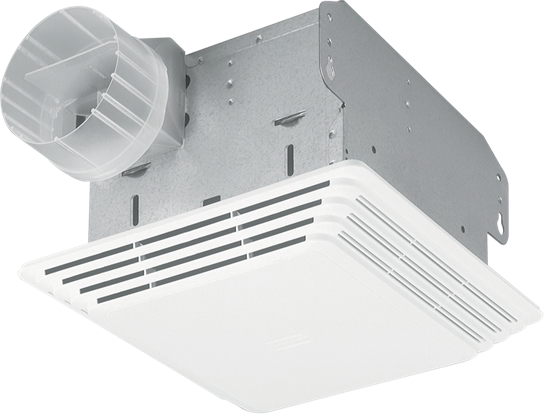

Broan 684 0.5 Amp 120 Volt 80 CFM 2.5 Sones 48 W 1280 RPM 10-5/8 x 11-1/8" White Polymeric Grille Ceiling/Wall Fan
Product image thumbnail 0
Product image thumbnail 1
$49.49/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan-Nutone
Mfg Catalog # 684
QED Part # 132427
Fan Only

Overview

  • Centrifugal blower wheel and 4-pole motor deliver high exhaust capacity at low sound levels
  • 80 CFM
  • Designer styled white polymeric grille complements virtually any decor
  • Torsion spring grille mounting – no tools necessary
  • Single packs and Project Paks
  • Metal grille kit S97011308 (available separately)

Specifications

  • CFM @ 0.125": N/A
  • Wall Installation: Yes
  • CSA: No
  • Minimum construction space required: 2x6
  • Material: Polymeric
  • Product Weight: 6.5 lbs
  • Watts @ 0.1": 49
  • Humidity Sensing: No
  • ENERGY STAR® qualified: No
  • HVI Certified: Yes
  • Nightlight: No
  • cUL Listed: No
  • Globe Glass Color: N/A
  • Housing Dimension LxWxH: 8" x 8-1/4" x 5-3/4"
  • Watts @ 0.25": 45.3
  • Baths up to () Sq Ft: 75
  • Housing Height: 5-3/4"
  • CFM @ 0.25": 68
  • Rated Watts: 49
  • Grille Length: 10-5/8"
  • Ceiling Installation: Yes
  • Heater wattage: N/A
  • Rated Amps: 0.5
  • Light Bulbs Included: No
  • Warranty: 1 Year
  • Rated Sones - Vertical: N/A
  • Housing Width: 8-1/4"
  • Duct Direction: Horizontal
  • Duct Size: 4"
  • Grille Width: 11-1/8"
  • Light Bulb Wattage: N/A
  • Lighting Type: No Light
  • Grille Finish: White Polymeric
  • Light Bulb Quantity: 0
  • Project Pack: No
  • Sones: 2.5
  • Color: White
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
  • Housing Length: 8"
  • CFM @ 0.10": 80
  • Motor engineered for continuous operation: No

Video Links

Resources

Overview

Family Brand Name Broan-Nutone
Long Description Ventilation Fan, 80 CFM, 2.5 Sones
GTiN 00026715002900
Length 8 in
Finish White Polymeric
Warranty Length 1 yr
Width 8-1/4 in
Color White
Type Ceiling/Wall Mount Fan
Material Polymeric
Applications For Removing Humidity And Odors From Bathrooms Up To 100 SQ-FT Or Any Other Room
Height 5-3/4 in
Weight 6.5 lb
Standard AMCA Certified,HVI 2100 Certified,UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit
Wattage 49 Watt
Energy Saver No
Amperage 0.5 Amp
Grille Width 11-1/8 in
Duct Size 4 in
Grille Length 10-5/8 in
Grille Material Polymeric
